EN10219 S355MLH 4x4 Square Tubing
- group name
- rectangular steel pipe
- Min Order
- 5 ton
- brand name
- Yuantai Derun Steel Pipe Manufacturing Group
- model
- square tubing 4x4
- Nearest port for product export
- XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Cash
- update time
- Wed, 25 Dec 2024 16:12:59 GMT
Paramtents
Thickness 0.5- 60 mm
OD(Outer diameter) 4x4 inch
Certification CE,LEED,BV,PHD&EPD,BC1,EN 10210,EN10219,ISO9000
Surface Treatment Black painted or REQUEST
Tolerance as required
Length 0.5-24M according to client requirement
Standards ASTM A500/A501,EN10219,EN10210
Materials S355MLH
Delivery Time 7-30 Days
Packging & Delivery
-
Min Order5 ton
Briefing
Enhance your projects with EN10219 S355MLH 4x4 Square Tubing. Crafted by yuantaiderun, China's premier manufacturer.
Detailed

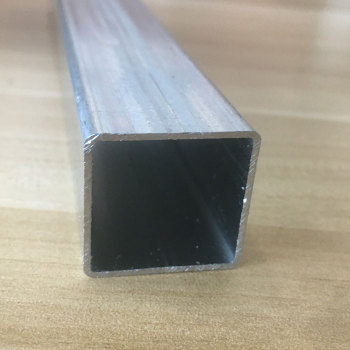

EN10219 S355MLH 4x4 Square Tubing
EN10219 S355MLH 4x4 Square Tubing is a common metal building material. EN10219 S355MLH 4x4 Square Tubing is widely used in fields such as building structures and mechanical structures. The EN10219 S355MLH 4x4 Square Tubing produced by Yuantai Derun has the advantages of tight welds, uniform wall thickness, and good mechanical strength. Send your request immediately.
4 Types Of 4x4 Square Tubing For Sale
Yuantai Derun can produce four different coating treatments for 4x4 Square Tubing, namely black carbon steel 4x4 Square Tubing, pre galvanized 4x4 Square Tubing, hot-dip galvanized 4x4 Square Tubing, and zinc aluminum magnesium coated 4x4 Square Tubing. The service life of different coatings also varies. If you want to learn more. Send your request immediately.
Black Carbon Steel 4x4 Square Tubing
Hot Dipped Galvanised 4x4 Square Tubing
Pre galvanized 4x4 Square Tubing
Zinc Aluminum Magnesium Coated 4x4 Square Tubing
EN10219 S355MLH 4x4 Square Steel Tubing Chemical Composition
Carbon ≤ 0.14%, silicon ≤ 0.50%, manganese ≤ 1.50%, phosphorus ≤ 0.030%, sulfur ≤ 0.025%, niobium ≤ 0.05%, vanadium ≤ 0.10%,
Aluminum ≥ 0.020%, titanium ≤ 0.05%, nickel ≤ 0.3%, molybdenum ≤ 0.20%, nitrogen ≤ 0.02%
EN10219 S355MLH 4x4 Steel Square Tubing Mechanical Properties
Wall thickness ≤ 16mm: yield strength ≥ 355MPa, tensile strength ≥ 450-610MPa, elongation ≥ 22%
16mm < wall thickness ≤ 40mm: yield strength ≥ 345MPa, tensile strength ≥ 450-610MPa, elongation ≥ 22%
Free Square Tubing 4x4 Samples For You
In order to facilitate buyers to quickly understand the quality of the 4x4 Square Tubing produced by Yuantai Derun, the free sample policy has been cancelled. As long as the sample length does not exceed 20 centimeters, you only need to pay one shipping fee. Get free samples now!
Common Hot Selling 4x4 Square Tube Dimensions
|
4x4 1/4 square tubing
|
4x4 11 gauge square tubing
|
4x4 1/8 square tubing
|
4x4 3/16 square tubing
|
|
4x4 square tubing 14 gauge
|
3 ga 4x4 square steel tubing
|
4x4 16 gauge square tubing
|
4x4 square tubing 20 ft
|
Application
EN10219 S355MLH 4x4 Square Tubing is widely used for many industries,such as:
1. In the field of architecture:
Business buildings, theaters, sports halls, exhibition halls, airports, high-speed rail stations, factories, glass curtain walls, villas, etc.
2. In the field of mechanical manufacturing:
Tractor manufacturing, truck manufacturing, crane manufacturing, lathe manufacturing, agricultural machinery manufacturing, fitness equipment manufacturing, automobile manufacturing, electrical equipment manufacturing, shipbuilding, etc
3. Home decoration industry
Doors and windows, fences, guardrails, steel beams, brackets, furniture manufacturing, etc.
4. Bridge and tunnel field
Bridge structural components, tunnel support components, etc.
FAQS
Q: Can you give me a fatory 4x4 square tubing 20 ft price
A: Yes, we can. But the purchaser requires a minimum order quantity of around 5 tons.
Q: What is 4x4 square tubing price per foot?
A: The 4x4 Square Tubing Price Per Foot is a floating price. To know the specific price, please consult the account manager
Q: How to know 4x4 square steel tubing weight?
A: Generally, a rough weight can be obtained through weight calculation, and the actual weight can be determined through weighing.
Q:
How To Know 4x4 square tubing strength?
A: The strength of square tubes is determined through a series of calculations and consideration of multiple factors. The following are several key aspects for determining the strength of square tubes:
Calculation formula:
Koch's formula: S=(M * y)/W, where S is the strength of the square steel pipe section, M is the bending moment, y is the maximum distance between the section and the neutral axis, and W is the section modulus that resists bending moment.
Eisenberg formula: S=(My)/3 (I * 1/2), where S, M, y are the same as the Coriolis formula, and I is the moment of inertia of the cross-section.
Lorentz formula: S=M/W, where S, M, and W are the same as the Coriolis formula.
Strength formula (based on strength theory): σ=F/A, where σ is strength, F is force, and A is area.
Influencing factors:
Material: The material of square tube plays an important role in its strength. For example, using high-strength materials such as Q235, Q345, etc. can better withstand external forces.
Manufacturing process: Different manufacturing processes can result in differences in the strength of square tubes.
Section shape: The section shape of a square tube (including side length and wall thickness) also affects its strength.
Other considerations:
Actual stress state: In practical applications, square tubes may be subjected to various stresses, so the influence of actual stress state on strength needs to be considered.
Load distribution: The distribution of loads can also affect the strength of square tubes.
Material properties: The elastic modulus, yield strength, and other characteristics of the material are also important factors in determining the strength of square tubes.
Practical application:
In practical applications, the strength of the square tube is usually estimated and tested based on specific usage scenarios and requirements, combined with the above formulas and influencing factors.
Through experiments and simulation analysis, the strength design of square tubes can be further verified and optimized.
In summary, determining the strength of square tubes requires comprehensive consideration of multiple factors and the use of appropriate calculation formulas and experimental methods for estimation and verification.
Q: How to choose the coating for 4x4 Square Tube?
A: At Yuantai Derun, our purchasers should consider the application environment of different square tubes when selecting coating. Generally, they are arranged in descending order of corrosion resistance strength: black carbon steel square tube<pre galvanized square tube<zinc aluminum magnesium coated square tube<hot-dip galvanized square tube.
