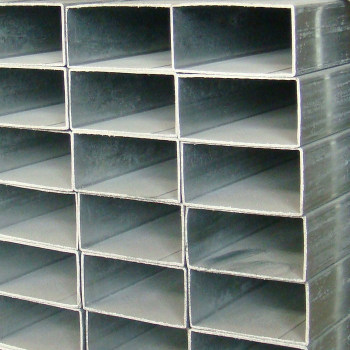

mechanical/structural steel rectangular tube

group name: square steel pipe

Min Order: 25 ton

brand name: Yuantai Derun Steel Pipe Manufacturing Group

model: Rectangle steel tubing

Nearest port for product export: XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Cash

update time: Thu, 21 Nov 2024 16:58:34 GMT

contact supplier

Paramtents

Thickness 0.5- 16 mm
OD(Outer diameter) 10*10-200*200mm
Certification CE,LEED,BV,PHD&EPD,BC1,EN 10210,EN10219,ISO9000
Tolerance as required
Length 0.5-26.5M according to client requirement
Delivery Time 7-30 Days

Packging & Delivery

Min Order25 ton

Briefing

Mechanical/structural steel rectangular tube is a high-strength and durable industrial material widely used in many fields.

Detailed

Mechanical/Structural Steel Rectangular Tube

We are pleased to offer mechanical/structural steel rectangular tubing in either A500 Grade B or A513. ASTM A500 is the standard specification for round and shaped cold-formed welded and seamless carbon steel structural tubing, while ASTM A513 is the standard specification for resistance-welded carbon and alloy steel mechanical tubing. Please visit our Gauge Conversion Chart for helpful information.

Advantageous Characteristics

Mechanical/Structural Steel Rectangular Tube are made from low carbon steel, offering a balance between strength and affordability. These tubes have excellent weldability, making them suitable for fabrication and welding applications. Send your request now.

Meets ASTM A500/A513

Economical

Good Weldability

Easy Processing

High Strength

Widely Used

Structural Steel Rectangular Tube Sizes

A513 Mechanical Tubing OD(outer diameter) ≤ 2",or OD ≤11ga wall thickness. (Note:1"=25.4mm)

A500 Structural Tubing OD(outer diameter)≥2", or OD＞11ga wall thickness.

Mechanical/Structural Steel Rectangular Tube produced by Yuantai Derun outer diameter:10*15-800*1200mm

Yuantai Derun Structural Steel Rectangular Tube Length range:0.5-26.5M

Yuantai Derun Mechanical/Structural Steel Rectangular Tube wall thickness: 0.5-60mm

if you want more size about structural steel rectangular tube dimensions,please contact us now!

Chemical Composition

Standard	C（%）	Fe（%）	Mn（%）	P（%）	S（%）
A513	0.17 - 0.23	99.08 - 99.53	0.3 - 0.6	0.04 max	0.05 max
	C（%）	Cu（%）	Fe（%）	S（%）	P（%）
A500	0.3 max	0.18 max	99 min	0.063 max	0.05 max

Physical-Mechanical Strength

Name	Tensile Strength	Yield Strength
ASTM A513 Tube	132,000psi/602 MPa	74,185psi/512 MPa
ASTM A500 Grade A Tube	45,000 psi (310 MPa)	39,000 psi (269 MPa)
ASTM A500 Grade B Tube	58,000 psi (400 MPa)	46,000 psi (317 MPa)
ASTM A500 Grade C Tube	62,000 psi (427 MPa)	50,000 psi (345 MPa)
ASTM A500 Grade D Tube	58,000 psi (400 MPa)	26,000 psi (250 MPa)

Applications

Mechanical/Structural steel rectangular tube have a wide range of applications. Send your application requirements immediately

Machinery

Part

Lathe

Steel beam

Car

Engineering Structure

Steel structure

Decoration

Furniture

Barrel

Hydraulic equipment

Agricultural machinery
