Pre galvanized hollow rectangular section
- group name
- Pre Galvanized Steel Tube
- Min Order
- 5 ton
- brand name
- Yuantai Derun Steel Pipe Manufacturing Group
- model
- GI hollow section
- Nearest port for product export
- XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Cash
- update time
- Fri, 22 Nov 2024 04:35:41 GMT
Paramtents
Thickness 0.5- 60 mm
OD(Outer diameter) 10*15-800*1200mm
Technique ERW
Certification CE,LEED,BV,PHD&EPD,BC1,EN10210,EN10219,ISO9000,AS
Surface Treatment REQUEST
Tolerance as required
Length 0.5-26.5M according to client requirement
Materials Gr.A,Gr.B,Gr.C,S235,S275,S355,S420,S460,A36
Delivery Time 7-30 Days
Packging & Delivery
-
Min Order5 ton
Briefing
Pre galvanized hollow rectangular sections manufacturer China Yuantai Derun,its advantage is High quality and low price.
Detailed

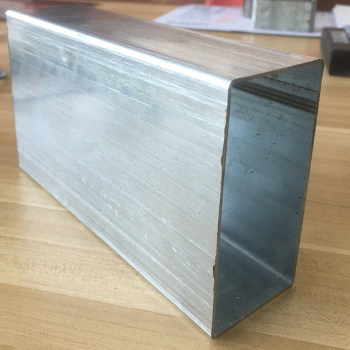

Pre Galvanized Hollow Rectangular Sections
Pre galvanized hollow rectangular sections are rectangular carbon steel welded hollow sections made from galvanised steel coils by the forming process of ERW tubes.
In China,Yuantai Derun is the brand leader of pre galvanized hollow rectangular sections.
The pre galvanized hollow rectangular sections produced by Yuantai Derun have excellent anti-corrosion properties, bright and clean surfaces, flat end without burr, uniform wall thicknesses and precise dimensions, which make them a very popular anti-corrosion metal building material.
Complete Pre Galvanized Hollow Rectangular Section Size For You
At Yuantai Derun, the pre-galvanised hollow rectangular section has a very complete range of sizes, and we can also produce and customise some models that cannot be made by small factories and workshops. Here are some common pre-galvanised hollow rectangular section size table, if in this table, you do not find, you need the model, do not worry, because there are some non-standard models, we did not put into this table, if you want to know more about the pre-galvanised hollow rectangular section model specifications, you can contact our account manager.
|
Outer Diameter(mm)
|
Wall Thickness(mm)
|
Length(M)
|
Pieces/Bundle |
Weight Per Piece（KG）
|
|
20*30
|
0.9
|
6
|
120 |
3.60
|
|
1
|
4.03
|
|||
|
1.1
|
4.46
|
|||
1.2 | 4.88 | |||
1.3 | 5.30 | |||
1.4 | 5.72 | |||
1.5 | 6.13 | |||
1.7 | 6.95 | |||
1.8 | 7.35 | |||
1.9 | 7.74 | |||
2.0 | 8.14 | |||
20*40 | 0.9 | 6 | 135 | 4.34 |
1 | 4.86 | |||
1.3 | 6.42 | |||
1.4 | 6.93 | |||
1.7 | 8.43 | |||
1.8 | 8.93 | |||
1.9 | 9.42 | |||
25*50 | 0.9 | 6 | 84 | 5.46 |
1 | 6.12 | |||
1.1 | 6.78 | |||
1.2 | 7.44 | |||
1.3 | 8.09 | |||
1.4 | 8.74 | |||
1.5 | 9.39 | |||
1.6 | 10.03 | |||
1.7 | 10.66 | |||
1.9 | 11.93 | |||
30*50 | 1.6 | 6 | 70 | 10.72 |
1.7 | 11.41 | |||
1.8 | 12.09 | |||
40*60 | 1.0 | 6 | 48 | 8.21 |
1.1 | 9.11 | |||
1.2 | 9.99 | |||
1.6 | 13.51 | |||
1.7 | 14.38 | |||
1.8 | 15.25 | |||
1.9 | 16.11 | |||
2 | 16.97 | |||
40*80 | 0.9 | 6 | 40 | 8.80 |
1.0 | 9.89 | |||
1.1 | 10.97 | |||
1.6 | 16.30 | |||
1.8 | 18.41 | |||
1.9 | 19.46 | |||
50*100 | 0.9 | 6 | 32 | 11.03 |
1 | 12.40 | |||
1.1 | 13.75 | |||
1.3 | 16.46 | |||
1.4 | 17.81 | |||
1.5 | 19.15 | |||
1.6 | 20.49 | |||
1.7 | 21.82 | |||
1.8 | 23.15 | |||
1.9 | 24.48 | |||
2.0 | 25.80 |
Flexible Customization Of Your Pre Galvanized Hollow Rectangular Section
At Yuantai Derun,You can flexibly customize your pre galvanized hollow rectangular section, with the following customization options:
1. Outer Diameter
You can flexibly customize the outer diameter of your pre galvanized hollow rectangular section, as long as the outer diameter is within this range: 10 * 10-200 * 200mm. Please send your customized outer diameter size immediately.
2. Wall Thickness
You can flexibly customize the wall thickness of your pre galvanized hollow rectangular section, as long as the wall thickness is within this range: 0.5-3.75mm, and immediately send your customized wall thickness requirements.
3. Length
You can flexibly customize the length of your pre galvanized hollow rectangular section, as long as the length is within this range: 0.5-24M. Send your length customization requirements immediately.
Hollow Rectangular Section Properties
A Brighter And Cleaner Surface
The surface of the pre-galvanized hollow rectangular sections produced by Yuantai Derun is very clean and bright. This is very advantageous in the design of structures where aesthetics are required.
Light Weight
Pre-galvanized hollow rectangular sections are lightweight because they are thin and hollow. This makes them a reliable metal building material for lightweight steel structures.
Good Anti-Corrosion Ability
Pre galvanized hollow rectangular sections have good anti-corrosion ability, thanks to their surface galvanized layer, which has good anti-corrosion performance and can effectively prevent the corrosion of steel by corrosive media. This corrosion resistance is mainly due to the protective effect of the zinc layer. Zinc forms a barrier on the steel plate, effectively preventing corrosion factors from penetrating and protecting the steel from corrosion.
Satisfactory Hollow Rectangular Section Weight
At Yuantai Derun, every pre-galvanized hollow rectangular section is genuine and weighs enough. We use two ways to calculate weight: rational weight and actual weight. If you have any questions about weight, contact your account manager.
Advanced Hollow Rectangular Section Making Process
Yuantai Derun adopts advanced pre galvanized hollow rectangular section manufacturing technology. The following are the main process steps.
Galvanized coil uncoiling ->shear butt welding ->circular storage ->straightening ->roll cold forming ->high-frequency welding ->removal of excess welding bars ->water cooling ->sizing ->cutting ->detection ->spray label storage
Application
Pre galvanized hollow rectangular section is widely used for many industries. Such as
furniture
Mechanical manufacturing
decorate
Lightweight steel structure
agricultural machinery
truck
enclosure
goods shelves
Fitness Equipment,etc.
