Customized Zinc Aluminum Magnesium Coated Steel Tube

group name: zinc aluminium magnesium coating steel pipe

Min Order: 5 ton

brand name: Yuantai Derun Steel Pipe Manufacturing Group

model: Customized Steel Tubes

Nearest port for product export: XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Cash

update time: Wed, 25 Dec 2024 02:48:15 GMT

contact supplier

Paramtents

Thickness 0.5- 16 mm
Certification CE,LEED,BV,PHD&EPD,BC1,EN10210/10219,ISO
Tolerance as required
Packaging Customers't Requirement

Packging & Delivery

Min Order5 ton

Briefing

Customized Zinc Aluminum Magnesium Coated Steel Tube,low cost,high quality,complete specifications,fast delivery.

Detailed

Customized Zinc Aluminum Magnesium Coated Steel Tube

Customized Zinc Aluminum Magnesium Coated Steel Tube is also a requirement of some customers. When you need zinc aluminum magnesium coated steel pipes with special sizes, lengths, and shapes, Yuan Taide Run can also provide customized services for zinc aluminum magnesium coated steel pipes. Below is a detailed introduction to the customization options for our zinc aluminum magnesium coated steel pipes.

Customized Shape Of Zinc Aluminum Magnesium Coated Steel Pipe

At Yuantai Derun, you can flexibly customize the shape of zinc aluminum magnesium coated steel pipes, such as square, rectangular, circular, or irregular shapes, etc. Send your shape request immediately.

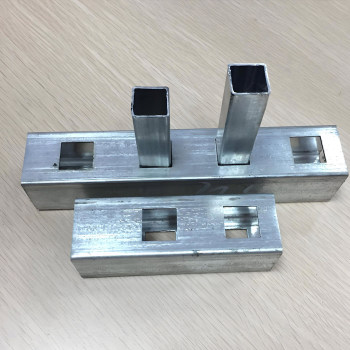

Square ZAM Coated Steel Tube

Rectangular ZAM Coated Tube

Round ZAM Coating Pipe

Oval Shaped ZAM Tube

Customized Size Of Zinc Aluminum Magnesium Coated Steel Tube

At Yuantai Derun,you can flexibly customize the size of zinc aluminum magnesium coated steel tube,The customized range of outer diameter and wall thickness is shown in the table below: Please send your size requirements immediately.

Shape	Outer Diameter(mm)	Wall Thickness(mm)	Length(M)
Square	1010-200200	0.5-2.75	1-24
Rectangular	1015-100300	0.5-2.75	1-24
Round	10.3-219	0.5-2.75	1-24

Customized Grade Of Zn AL Mg Coated Steel Tube

At Yuantai Derun,you can flexibly customize the grade for your Zn AL Mg coated steel tube. Such as S250GD+ZM,S350GD+ZM,S420GD+ZM,S450GD-ZM,etc.

The following is a table of mechanical properties corresponding to various steel strip grades. To learn more, please contact the account manager.

Mechanical Properties Of Steel Strip
Grade	Upper Yield Strength(Mpa)	Tensile Strength(Mpa)	Elongation After Fracture(%)
Grade	Not less than
S220GD+ZM	220	300	20
S250GD+ZM	250	330	19
S280GD+ZM	280	360	18
S320GD+ZM	320	390	17
S350GD+ZM	350	420	16
S390GD+ZM	390	460	16
S420GD+ZM	420	480	15
S450GD-ZM	450	510	14
