EN10210 S460NH LSAW Steel Hollow Section Supplier -Yuantai Derun Group
- group name
- LSAW steel pipe
- Min Order
- 25 ton
- brand name
- Yuantai Derun Steel Pipe Manufacturing Group
- model
- Hollow Section
- Nearest port for product export
- XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Cash
- update time
- Thu, 21 Nov 2024 18:17:28 GMT
Paramtents
Outer Diameter 355.6mm - 1440mm
Thickness 6mm- 50mm
Certification CE,EN,ISO,API
Tolerance as requirement
Secondary Or Not Non-secondary
Surface Treatment Black ,Yellow Varnish coating
Ends Plain,Bevelled
Delivery time 7-30 days
Supply capacity Annual output of 5 million tons
Packging & Delivery
-
Min Order25 ton
Briefing
Yuantai Derun is a big china lsaw steel tube manufacturer,can produce EN10210 S460NH LSAW steel hollow section,etc.
Detailed

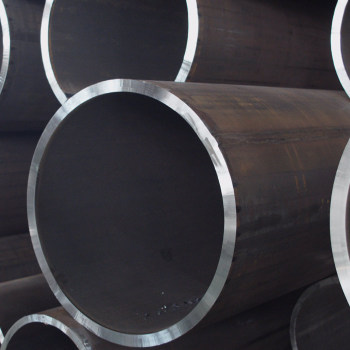

EN10210 S460NH LSAW Hollow Section Supplier -Yuantai Derun Group
EN 10210 S460NH LSAW hollow section is also known as low-carbon steel pipe. EN10210 S460NH LSAW Hollow Section is a widely used steel hollow section. It has the advantages of structural stability, excellent performance, strong bearing capacity, and affordability. The carbon content of EN 10210 S460NH LSAW Hollow Section is up to 0.2%, and the manganese content ranges from 1.00% to 1.70%, making them easy to form. These hollow sections are manufactured according to EN10210 standards and are commercially referred to as CS pipes or MS pipes.
EN 10210-1 Grade S460NH Hollow Section Properties
Chemical Composition
C |
Si
|
Mn | P |
S
|
Ni
|
Cr
|
≤0.22% |
≤0.60%
|
1.00-1.70% | ≤0.035% |
≤0.025%
|
≤0.8%
|
≤0.3%
|
Mo |
Cu
|
Nb | V |
Ti
|
Al
|
N
|
≤0.2% |
≤0.55%
|
≤0.05% | ≤0.2% |
≤0.05%
|
≥0.02%
|
≤0.025%
|
Physical And Mechanical Strength
|
Tensile Strength
|
Yield Strength
|
Elongation Rate
|
||
W.T. ≤16mm | W.T. > 16 mm W.T. ≤ 40 mm | W.T. > 40mm W.T. ≤ 65mm | ||
|
540–720 MPa
|
≥460 MPa
|
≥440 MPa | ≥ 430 MPa |
≥15%
|
EN 10210 S460NH Steel Grade Is Equivalent To Steel Grades In Other Countries
|
GB
|
DIN
|
BS | NFA |
EN
|
ASTM
|
|
Q460
|
DIN (17123/24/25) Grade FGS 47
|
NFA A 36-2011) Grade E 460 R+FP | ASTM A 678 Grade C |
EN 10210-1 Grade S460NH
|
ASME SA 678 Grade C
|
Dimensions And Sectional Properties Of A Limited Range Of Circular Hollow Sections
Advantage
The LSAW hollow section produced by Yuantai Derun has the following advantages.
1. China lsaw steel tube brand leader
2. Ce certification lsaw steel tube
3. CNAS certification china lsaw steel tube factory
4. LEED certification china lsaw steel tube manufacturer
5. BV certification china lsaw steel tube supplier
6. ABS certification EN 10210-1 Grade S460NH Carbon Steel Pipe brand
One Corner Of Workshop
Smooth pipe end
Chamfered edge
Sizing
Forming
Strict Layer By Layer Inspection For You
Impact Test
Yield Test & Tensile Test
Chemical Composition Test
Certificate
Application And Case
EN10210 S460NH LSAW hollow section is used for many industries.The EN10210 S460NH LSAW hollow section produced by Yuantai Derun has also been applied to major projects at home and abroad multiple times.
Qatar Airport
500 Tons EN10210 S460NH LSAW hollow section produced by Yuantai Derun was used in Qatar Airport.
Qiddaya speed park project- the blade
11000 Tons EN10210 S460NH LSAW hollow section produced by Yuantai Derun was used in Qiddaya speed park project
