Internal oxygen external 3PE (TPEP)anti-corrosion spiral steel pipe

group name: spiral steel pipe

Min Order: 5 ton

brand name: Yuantai Derun Steel Pipe Manufacturing Group

model: TPEP steel pipe

Nearest port for product export: XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Cash

update time: Thu, 21 Nov 2024 21:06:07 GMT

contact supplier

Paramtents

Standard API 5L, ASTM A501/500, bs,EN10210/10219,JIS G3466
Thickness 4mm to 30mm
Outer Diameter(OD) 219mm to 2032mm
Supply capacity Annual output of 5 million tons
Certification API/SGS/BV/JIS/EN/ISO/CE/BC1/GB/EPD&PHD/LEED
Alloy Or Not Non-Alloy
Length 1-24meters or as client required
Packing Loosed PCS/nylon rope(for the coating pipes)
Delivery Time 7-30 Days
Grade Gr.A,Gr.B,Gr.C,S275J0H,S355JR,S355J0H,S355J2H,Q195

Packging & Delivery

Min Order5 ton

Briefing

Internal oxygen external 3PE anti-corrosion spiral steel pipe, low cost,high quality,complete specifications,fast delivery

Detailed

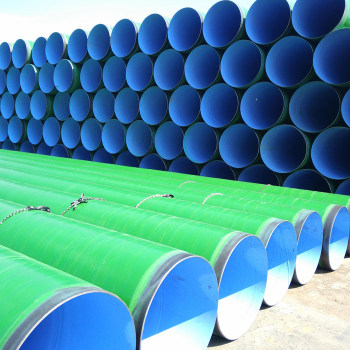

Internal Oxygen External 3PE (TPEP) Anti-Corrosion Spiral Steel Pipe

Internal epoxy external 3PE anticorrosion steel pipe is also known as TPEP anticorrosion steel pipe (T, three layers of the initial letters of the English Three, PE refers to polyethylene, EP refers to epoxy resin), is in the external 3PE internal fusion bonded epoxy anticorrosive steel pipe and external single-layer polyethylene composite steel pipe epoxy composite steel pipe on the basis of the upgraded again the product is the current long-distance pipeline buried in the commonly used form of corrosion of the steel pipe.

Advantage Of TPEP Spiral Welding Pipe

Internal oxygen external 3PE (TPEP)anti-corrosion spiral steel pipe has those advantages:

1.Good anti-corrosion performance

2.Cathodic peel resistance

3.High mechanical strength

4.Strong bearing capacity

5.Green and pollution-free

6.Smooth inner wall of pipeline

7.Low coefficient of friction

TPEP SSAW Steel Pipe Standards

API 5L, ASTM A501/500, bs,EN10210/10219,JIS G3466,CJ/T120-2016,GB/T23257-2017,AWWA-C213-2015,etc.

Application Of TPEP Spiral Steel Pipes

TPEP anti-corrosion spiral steel pipe is used for those industries,such as:

1. Water supply and drainage

2. Seawater transportation

3. Warm water delivery

4. Oil pipeline

5. Gas transportation

6. Irrigation of farmland
