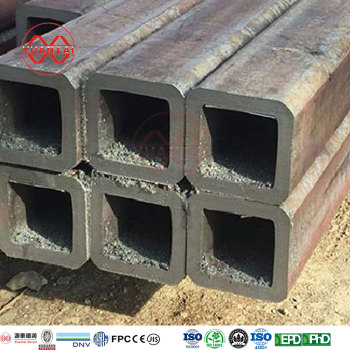

Seamless square tube rectangular pipe EN10219 S460MH

group name: square steel pipe

Min Order: 30 ton

brand name: Yuantai Derun Steel Pipe Manufacturing Group

model: hfw-yt-S460MH

Nearest port for product export: XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Cash

update time: Wed, 27 Nov 2024 02:34:06 GMT

contact supplier

Paramtents

Thickness 0.5-60mm
OD(outer diameter) 10*10mm-1200*1200mm 10*15-800*1200mm
Grade S460MH
Surface Customers't Requirement
Delivery Time 7-30 Days
Length 0.5-24M according to client requirement
Brand YUANTAI DERUN
Tolerance standard or as required
Certification CE,LEED,BV,PHD&EPD,BC1,EN10210,EN10219,ISO9000,etc

Packging & Delivery

Min Order30 ton

Briefing

Unleash the Power of EN10219 S460MH Square and Rectangular Steel Pipes. Partner with the Largest Manufacturer in China.

Detailed

Seamless square tube rectangular pipe EN10219 S460MH

Seamless square tube rectangular pipe EN10219 S460MH chemical composition

Carbon ≤ 0.16%, silicon ≤ 0.60%, manganese ≤ 1.70%, phosphorus ≤ 0.035%, sulfur ≤ 0.030%, niobium ≤ 0.050%, vanadium ≤ 0.12%,

Aluminum ≥ 0.020%, titanium ≤ 0.050%, nickel ≤ 0.30%, molybdenum ≤ 0.20%, nitrogen ≤ 0.025%,

Seamless square tube rectangular pipe EN10219 S460MH Mechanical properties

Wall thickness ≤ 16mm: yield strength ≥ 460MPa, tensile strength ≥ 530-720MPa, elongation ≥ 17%

16mm≤ 40mm: yield strength ≥ 440MPa, tensile strength ≥ 530-720MPa, elongation ≥ 17%

Minimum impact energy KV （J）at test temperature of -50°C ，Not required

Minimum impact energy KV （J）at test temperature of -20°C ，40 J

Seamless square tube rectangular pipe EN10219 S460MH specification table

O.D. mm	W.T.mm	O.D mm	W.T. mm	O.D mm	W.T. mm	O.D mm	W.T. mm
20*20	1.3	60120 80100 90*90	1.50	180*180	3	300800 400700 550550 500600
	1.4		1.70		3.5-3.75		9.5-9.75
	1.5		1.80		4.5-4.75		11.5-11.75
	1.7		2.00		5.5-7.75		12-13.75
	1.8		2.20		9.5-9.75		15-50
	2.0		2.5-4.0		11.5-11.75
2030 2525	1.3		4.25-4.75		12.0-25.0
	1.4		5.0-6.3	100300 150250 200*200	2.75	300900 400800 600600 500700
	1.5		7.5-8		3.0-4.0		9.5-9.75
	1.7	50150 60140 80120 100100	1.50		4.5-9.75		11.5-11.75
	1.8		1.70		11.5-11.75		12-13.75
	2.0		2.00		12.5-12.75		15-50
	2.2		2.20		13.5-13.75
	2.5-3.0		2.5-2.75		15.5-30
2040 2540 3030 3040	1.3		3.0-4.75	150300 200250	3.75	3001000 400900 500800 600700 650*650
	1.4		5.5-6.3		4.5-4.75
	1.5		7.5-7.75		5.5-6.3		9.5-9.75
	1.7		9.5-9.75		7.5-7.75		11.5-11.75
	1.8		11.5-16		9.5-9.75		12-13.75
	2.0	60160 80140 100*120	2.50		11.5-11.75		15-50
	2.2		2.75		13.5-30
	2.5-3.0		3.0-4.75	200300 250250	3.75	4001000 500900 600800 700700
	3.25-4.0		5.5-6.3		4.5-4.75
2550 3050 3060 4040 4050 4060 50*50	1.3		7.5-7.75		5.5-6.3		9.5-9.75
	1.4		9.5-16		7.5-7.75		11.5-11.75
	1.5	75*150	2.50		9.5-9.75		12-13.75
	1.7		2.75		11.5-11.75		15-50
	1.8		3.0-3.75		12-13.75
	2.0		4.5-4.75		15.5-30
	2.2		5.5-6.3	200400 250350 300*300	4.5-6.3	5001000 600900 700800 750750
	2.5-3.0		7.5-7.75		7.5-7.75		9.5-9.75
	3.25-4.0		9.5-16		9.5-9.75		11.5-11.75
	4.25-4.75	80160 120120	2.50		11.5-11.75		12-13.75
	5.0-5.75		2.75		12-13.75		15-50
	5.75-6.3		3.0-4.75		15.5-30
4080 5070 5080 6060	1.3		5.5-6.3	200500 250450 300400 350350	5.5-6.3	5001100 600900 700800 750750
	1.5		7.5-7.75		7.5-7.75		9.5-9.75
	1.7		9.5-9.75		9.5-9.75		11.5-11.75
	1.8		11.5-20		11.5-11.75		12-13.75
	2.0	100*150	2.50		12-13.75		15-50
	2.2		2.75		15.5-30
	2.5-3.0		3.0-4.75	280*280	5.5-6.3	6001100 7001000 800900 850850
	3.25-4.0		5.5-6.3		7.5-7.75		9.5-9.75
	4.25-4.75		7.5-7.75		9.5-9.75		11.5-11.75
	5.0-6.0		9.5-9.75		11.5-11.75		12-13.75
40100 6080 70*70	1.3		11.5-20		12-13.75		15-50
	1.5	100200 120180 150*150	2.50		15.5-30
	1.7		2.75	350400 300450	7.5-7.75	7001100 8001000 900*900
	1.8		3.0-7.75		9.5-9.75		11.5-11.75
	2.0		9.5-9.75		11.5-11.75		12-13.75
	2.2		11.5-20		12-13.75		15-50
	2.5-3.0	100250 150200	3.00		15.5-30
	3.25-4.0		3.25-3.75	200600 300500 400*400	7.5-7.75	8001100 9001000 950*950
	4.25-4.75		4.25-4.75		9.5-9.75		11.5-11.75
	5.0-6.3		9.5-9.75		11.5-11.75		12-13.75
50100 6090 60100 7575 80*80	1.3		11.5-11.75		12-13.75		15-50
	1.5		12.25		15.5-40
	1.7	140*140	3.0-3.75	300600 400500 400*400	7.5-7.75	9001100 10001000 800*1200
	1.8		4.5-6.3		9.5-9.75
	2.0		7.5-7.75		11.5-11.75		20-60
	2.2		9.5-9.75		12-13.75
	2.5-3.0		11.5-25		15.5-40
	3.25-4.0	160*160	3.00	400600 500500	9.5-9.75	11001000 11001100
	4.25-4.75		3.5-3.75		11.5-11.75		20-60
	5.0-5.75		4.25-7.75		12-13.75
	7.5-8		9.5-25		15.5-40

Seamless square tube rectangular pipe EN10219 S460MH VEDIO

CERTIFICATE

Yuantai steel pipe products have passed ISO9001, ISO14001, ISO45001, EN10219, EN10210, Singapore BC1, France BV, world green environmental protection EPD, Ph.D., and other certifications.

ISO9001

BC1

ISO14001 CNAS

ISO45001 CNAS

EN10219

EN10210

TOP 500 Private Enterprise

JIS G3466

Application

BRIDGE CONSTRUCTION

Hong Kong-Zhuhai-Macao Bridge，Our products are involved in the construction of bridges. It is a bridge and tunnel project connecting Hong Kong, Zhuhai, Guangdong and Macao in China.

BUILDING CONSTRUCTION

SINGAPORE GOOGLE BUILDING，From 2018 to 2019, we provided steel pipes with hollow section profiles for the construction of Google building in Singapore
