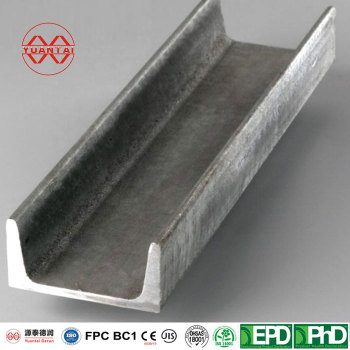

mild steel channel |U channel|C channel|C shape steel

group name: c channel

Min Order: 25 ton

brand name: Yuantai Derun Steel Pipe Manufacturing Group

model: ytdr-C-channel

Nearest port for product export: XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Cash

update time: Wed, 27 Nov 2024 02:34:06 GMT

contact supplier

Paramtents

Surface Treatment bare,oilling,galvanized,painted,ZMA coating
MOQ 2-5 Tons
Payment method TT/LC
Delivery Time 7-35 days

Packging & Delivery

Min Order25 ton

Briefing

Discover the ultimate solution for your industrial needs with our high-performance mild steel channels.

Detailed

mild steel channel |U channel|C channel|C shape steel

Discover the ultimate solution for your industrial needs with our high-performance mild steel channels. As China's leading manufacturer and trader, we go beyond providing top-quality products - offering galvanization, cutting, polishing, punching, heat treatment, and cold rolling services. Partner with us to revolutionize your business today!

Definition of C-shaped steel

As the name implies, the shape is like the English alphabet "C" structural steel profile. Prevent the use of building materials in steel structure buildings, etc. C-shaped steel is automatically processed and formed by a C-shaped steel forming machine. The C-shaped steel forming machine can automatically complete the forming process of C-shaped steel based on the given C-shaped steel size.

C channel processing process

The normal C channel forming process consists of a total of 9 steps.

Material placement ① - Leveling ② - Forming ③ - Setting ④ - Straightening ⑤ - Measuring length ⑥ - Punching round holes for tie bars ⑦ - Punching elliptical connecting holes ⑧ - Forming and cutting ⑨

How are C channel classified?

Galvanized C-shaped steel, hot-dip galvanized cable tray C-shaped steel, glass card slot C-shaped steel, glass curtain wall C-shaped steel, wiring duct C-shaped steel, reinforced C-shaped steel, double embrace C-shaped steel, single side C-shaped steel, manual forklift C-shaped steel, unequal edge C-shaped steel, straight edge C-shaped steel, inclined edge C-shaped steel, inner rolled edge C-shaped steel, inner inclined edge C-shaped steel, roof (wall) purlin C-shaped steel, automotive profile C-shaped steel, highway column C-shaped steel, solar support C-shaped steel (21-80 series) Template support C-shaped steel, precision C-shaped steel for equipment, etc.

C-shaped steel specification table

C-shaped steel purlins are divided into five specifications based on their height: 80, 100, 120, 140, and 160. The length can be determined according to engineering design, but considering transportation and installation conditions, the total length generally does not exceed 12 meters.

C-shaped steel specification table
Size(mm)	Weight（kg/m）	Size(mm)	Weight（kg/m）
80×40×20×2.5	3.925	180×60×20×3	8.007
80×40×20×3	4.71	180×70×20×2.5	7.065
100×50×20×2.5	4.71	180×70×20×3	8.478
100×50×20×3	5.652	200×50×20×2.5	6.673
120×50×20×2.5	5.103	200×50×20×3	8.007
120×50×20×3	6.123	200×60×20×2.5	7.065
120×60×20×2.5	5.495	200×60×20×3	8.478
120×60×20×3	6.594	200×70×20×2.5	7.458
120×70×20×2.5	5.888	200×70×20×3	8.949
120×70×20×3	7.065	220×60×20×2.5	7.4567
140×50×20×2.5	5.495	220×60×20×3	8.949
140×50×20×3	6.594	220×70×20×2.5	7.85
160×50×20×2.5	5.888	220×70×20×3	9.42
160×50×20×3	7.065	250×75×20×2.5	8.634
160×60×20×2.5	6.28	250×75×20×3	10.362
160×60×20×3	7.536	280×80×20×2.5	9.42
160×70×20×2.5	6.673	280×80×20×3	11.304
160×70×20×3	8.007	300×80×20×2.5	9.813
180×50×20×2.5	6.28	300×80×20×3	11.775
180×50×20×3	7.536
180×60×20×2.5	6.673
