ASTM A992 Steel H Beam & Channel / A572 Grade 50 Steel H Channel & Beam
- group name
- H PILES
- Min Order
- 2 ton
- brand name
- Yuantai Derun Steel Pipe Manufacturing Group
- model
- steel h beam
- Nearest port for product export
- XINGANG PORT TIANJIN CHINA, TANGSHAN CHINA, SHANGHAI CHINA, DALIAN PORT
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Cash
- update time
- Wed, 27 Nov 2024 02:34:37 GMT
Packging & Delivery
-
Min Order2 ton
Briefing
ASTM A992 steel H beam and ASTM A572 steel H beam are two major types of steel profiles suitable for wide flange beams. Among them, ASTM A992 steel beam contains several alloying elements such as vanadium or niobium, copper, nickel, chromium, and molybdenum, and its mechanical properties are slightly higher than ASTM A572 steel beam.
Detailed

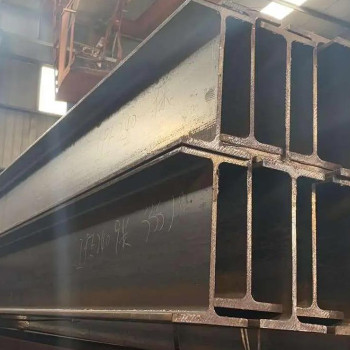

ASTM A992 steel H beam
ASTM A992 steel H beam and ASTM A572 steel H beam are two major types of steel profiles suitable for wide flange beams. Among them, ASTM A992 steel beam contains several alloying elements such as vanadium or niobium, copper, nickel, chromium, and molybdenum, and its mechanical properties are slightly higher than ASTM A572 steel beam.
Chemical Composition
Carbon, Max - 0.23%
Columbium, Max 0.05%
Manganese - 0.50 to 1.60%
Phosphorus, Max 0.035%
Silicon, Max - 0.40%
Sulfur, Max 0.045%
Vanadium, Max - 0.15%
ASTM A992 Steel Beam and Channel Properties
ASTM A992 steel contains vanadium, columbium, copper, nickel, chrome, and molybdenum, which improve its properties. ASTM A992 properties include:
Tensile Strength - 65 ksi
Yield Point - 65 ksi
Maximum Yield-to-Tensile Ratio - 0.85
ASTM A992 Benefits
ASTM A992 steel beam and channel products have many advantages over standard steel. Typical A992 Grade 50 advantages include:
- Strong
- Resists corrosion
- Easy to shape
- Easy to weld
Processing Services
Yuantai Derun provides various processing capabilities. The main services include cutting, bending and forming, welding, punching, heat treatment and other processing services.
Why Yuantai Derun?
Yuantai Derun Steel Tube Group is a top supplier of structural steel sections in China.
1. 100% after-sales quality and quantity assurance.
2. Professional sales managers quickly reply within 24 hours.
3. Large Stock for regular sizes.
4. Free sample 20cm high quality.
5. Strong production capacity and capital flow.
6. Accept small orders.
7. Famous brand raw materials
8. Supports OEM or ODM
9. 22 years of manufacturing experience
10. Can manufacture steel tubes of different projects and standards around the world
11. Yuantai Derun has a standing inventory of over 200000 tons, with annual shipping specifications of 10 * 10 * 0.5-1200 * 1200 * 60mm, 10 * 15 * 0.5-800 * 1200 * 60mm, Φ 219- Φ 3600mm, black mild steel box section, hot-dip galvanized square tube, spiral welded pipes,LSAW pipe,nearly 8 million tons,
Add the Tangshan Factory, the total production capacity will reach 10 million tons.
Use
ASTM A992 steel beam and channel products are widely used in the construction and machinery manufacturing industries.
1. Bridge
2. CBD.
3. Glass curtain wall engineering.
4. Shipbuilding
5. Aeronautics and Astronautics.
6. Dam construction.
7. Factory building
8. Lathe structure
FAQ
how much do steel h beams cost?
A steel beam costs $100 to $400 per foot to install, or $1,200 to $4,200 on average for homes. A load-bearing wall replacement costs $4,000 to $10,000.
How To know the weight of steel h beams?
The theoretical weight can be calculated using the formula: (web length * web thickness+flange width * flange thickness * 2) * 7.85=kg/m weight; It should be noted that theoretical weight does not equal actual weight.
The actual weight can be determined by weighing.
can jackposts be replaced with a steel h-beam？
Yes,foreign users believe that hydraulic jacks can be replaced with H-beams. This still depends on the specific carrying capacity to determine.
what is astm a992 grade 50?
ASTM A992 (A572 Grade 50) steel is currently the most widely used building structural steel. It is used to make I-beams, wide flanges, channels, plates, angle steels, and other shapes.
astm a992 equivalent?
The material corresponding to American standard H-beam A992 in China is Q345B, which has the characteristics of high strength, good toughness, and good weldability.
